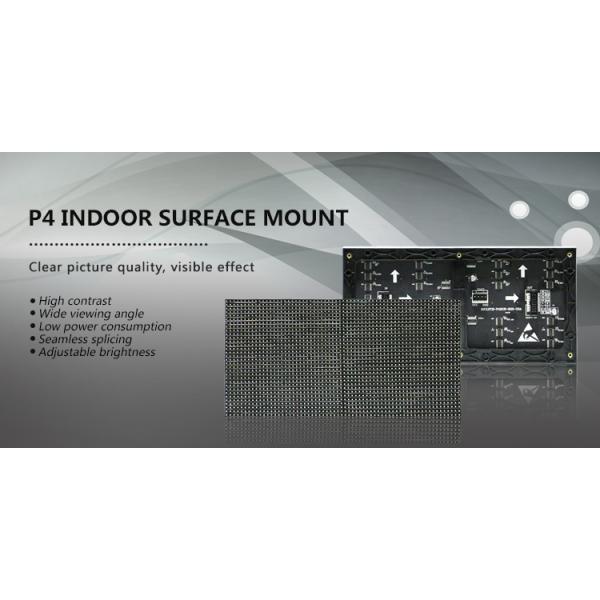

High Brightness P4 Indoor Led Advertising Display Screen With CE Rosh FCC

Brand Name : Jinhe
Model Number : P4
Certification : CE, FCC,Rosh,CCC
Place of Origin : China
MOQ : 1 sqm
Payment Terms : T/T, Western Union
Delivery Time : 10-30 workingdays
Packaging Details : Wooden Case, Flight Case
Module Size : 256mm*128mm
Pixel Pitch : 4mm
Color : Full color
Physical Density : 62500/m2
Module port : HUB-75
Module weight : 0.24kg
Pixel configuration : SMD2121
Life span : 100,000 hours
LED chip : Epister
Contact Now

P4 Indoor Led Advertising Display Screen With CE Rosh FCC Led Rental Die casting Aluminum Cabinet

Full Color Tube Led display Features:

1. First-class LED chip: Epistar from Taiwan.

2. With pure golden wire connection in LED.

3. Grand A row material for module frame and mask.

4. 4 layers PCB and copper plating thickness > 18mil.

5. Ag alloy solder paster to ensure good soldering on PCB.

6. Stainless steel screws when assembly.

7. Easy Installation & User-friendly software.

8. Two years warranty.

Module parameter
Technical parametersUNITparameters Values
Pixel pitchMM4
Panel sizeMML256*H128*13
Physical density/M262500
Pixel configurationRGB1,1,1
Driving methodConstant current 1/16scan
LED EncapsulationSMD2724black/2121black/2020 white
Display resolutionDOTS64X32=2048Dots
Module weightKG0.24
Module portHUB75-D
Module working voltageVDC5
Module consumptionW25
※Display Paremeter
Viewing angleDeg.H120 V120
Option distanceM4-45
Driving device20167/5020
Every square metre modulePCS30.5
Maximum powerW/ M2762
Frame FrequencyHZ≥60
Refresh frequencyHZ≥600
Equilibrium brightnessCD/ M2≥1200
Working environment temperature0C-10~60
Working environment humidityRH10%~70%
Display working voltageVAC220V±15%/110V±15%
Colour temperature9500K-11500K
Gray scale/color≥16.7M color
Input signalRF S-Video RGB etc
Control systemLinsn control system
Mean free error timeHOURS>5000
Lamp failure frequency<0.0001
Resist the electricity1500V last 1min No breakdown
Steel box weightKG/ M225(standard steel box)
Earth leakage currentmA<3.5mA(1500AC)
IP ratingThe back IP30,The front IP40
Steel box sizemmL512XH512x100

Full Color Tube Led Display Applications:

High resolution, can be used for high-end big screen TV, suitable fro interio home theatre system, compared with conventional TV, it has a larger screen, more bright beautiful color and more shocking display effect. I can be acted as a high-end indoor screens at the same time, used in the various types of indoor places, such as high-end conference rooms, families, halls, cinemas, theatres, lounge, stations and so on.

Jinhe After Services:

• Telephone investigation: Our after sales team will call the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.

• Free guarantee repair (including labor and material); free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.

• Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.

• Spare parts: necessary spare parts are provided together with products to customers.

• Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.

• Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.

• Site instruction service of installation is available.

Basic promise from Jinhe:
A: Full automatic production to control our high quality, best color consistency and get better performance.
B: Energy saving, low power consumption and long lifespan 100,000 hours (about 10 years).
C: We guarantee that the equipment we provide are brand new, complete and unused.
D: Good heat dissipation capability and high waterproof because of the unique design of vent fan (like shutter).
E: Our quality control throughout every process from materials-production- test-package-delivery
